Home made DJI Phantom 4 sun shade

Thursday 17 March 2016 at 2:44 pm

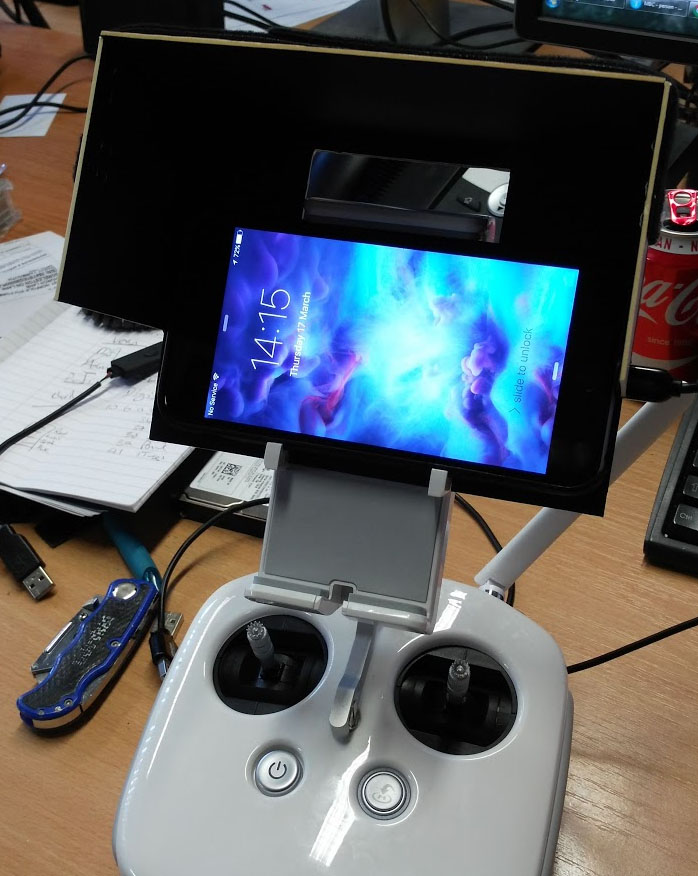

My friend and aerial photographer Mark (YouTube - TheMarkyShow) bought the latest DJI Phantom 4 quadcopter, and it's an amazing thing.  He wanted to get the official DJI sun shade but wanted to get flying right from day one, so I made one out of card for him:

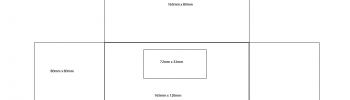

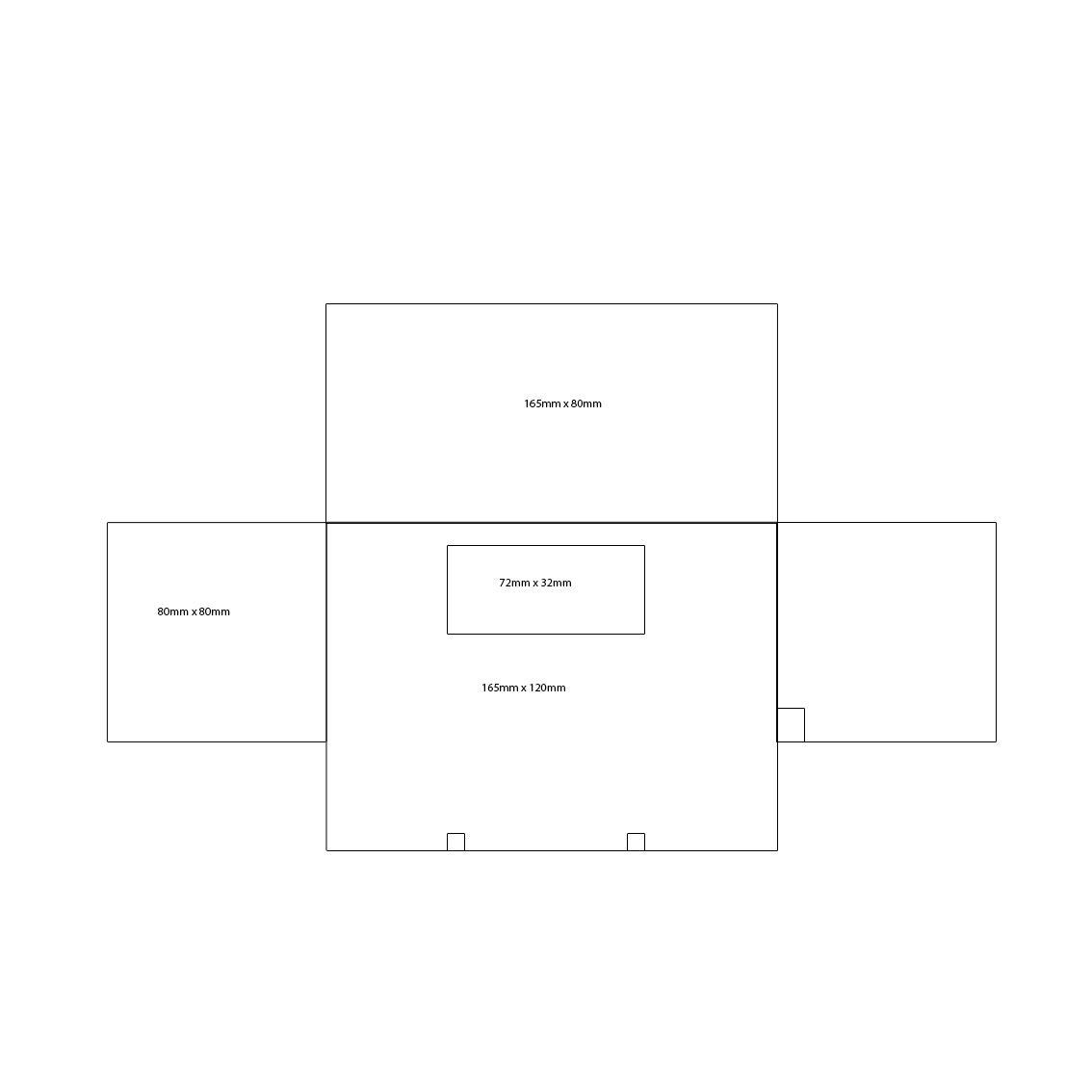

sunshade template

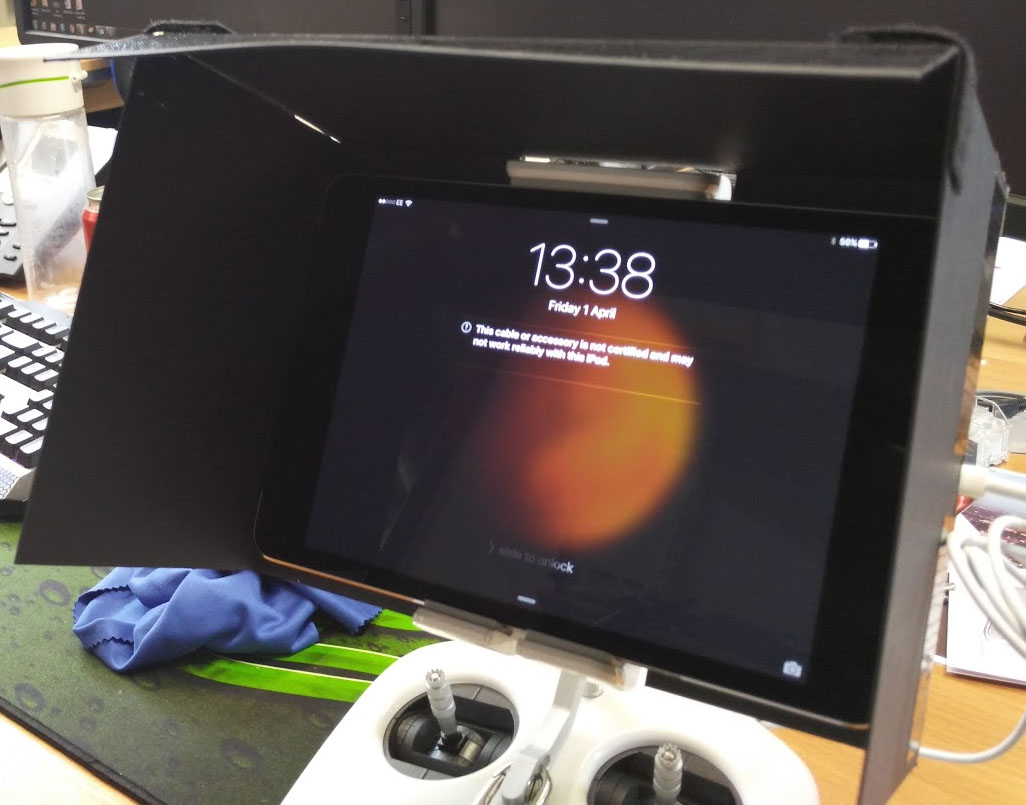

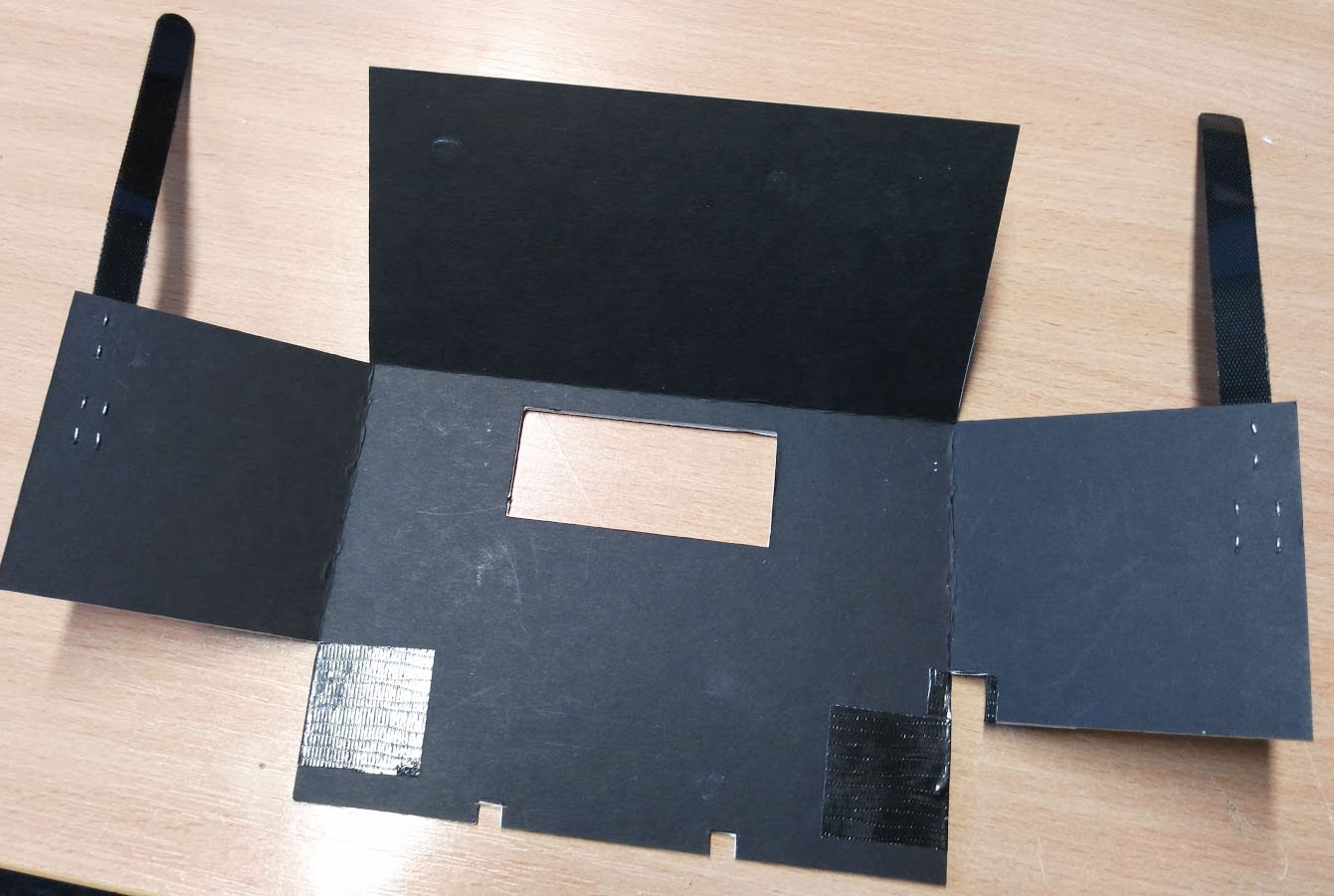

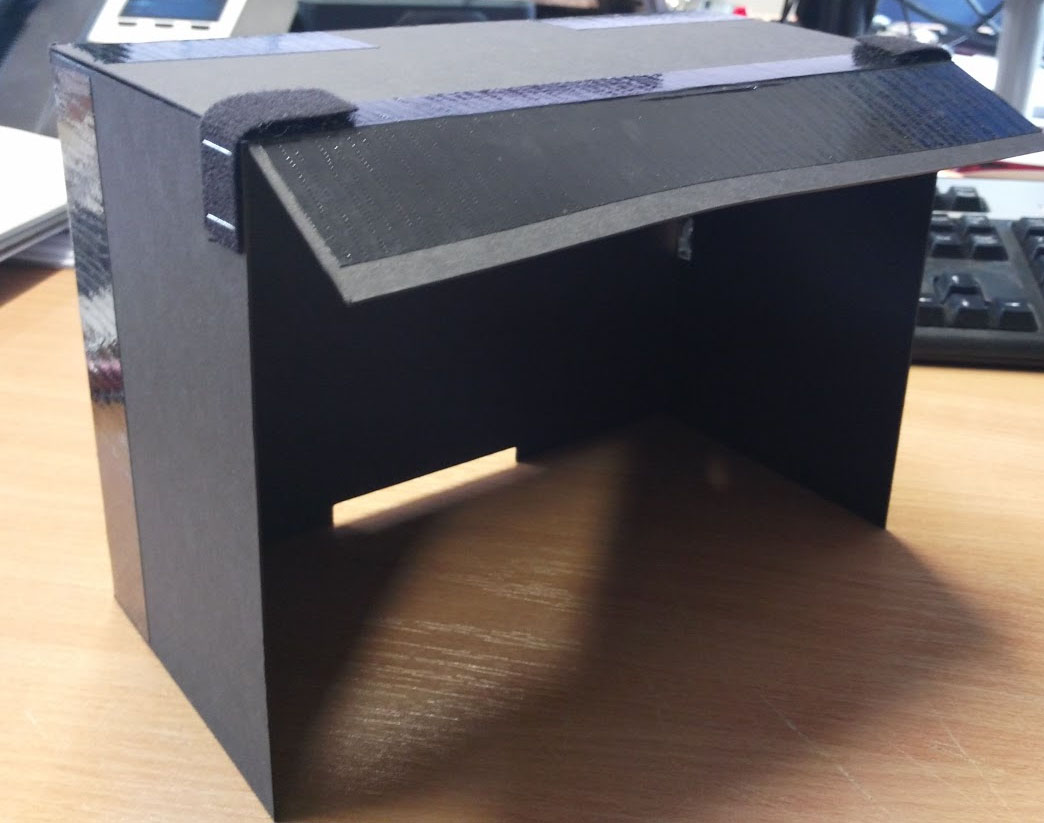

Cut out of mount board with a sharp scalpel, duct tape to strengthen the folds, and a couple of Velcro ties stapled on to hold it together.  This one fits the iPhone 6+, will probably fit smaller phones, but you may have to vary the location of the cutout for cable connection.  If I did it again I might make the side flaps a bit longer, but it seems to work pretty well.

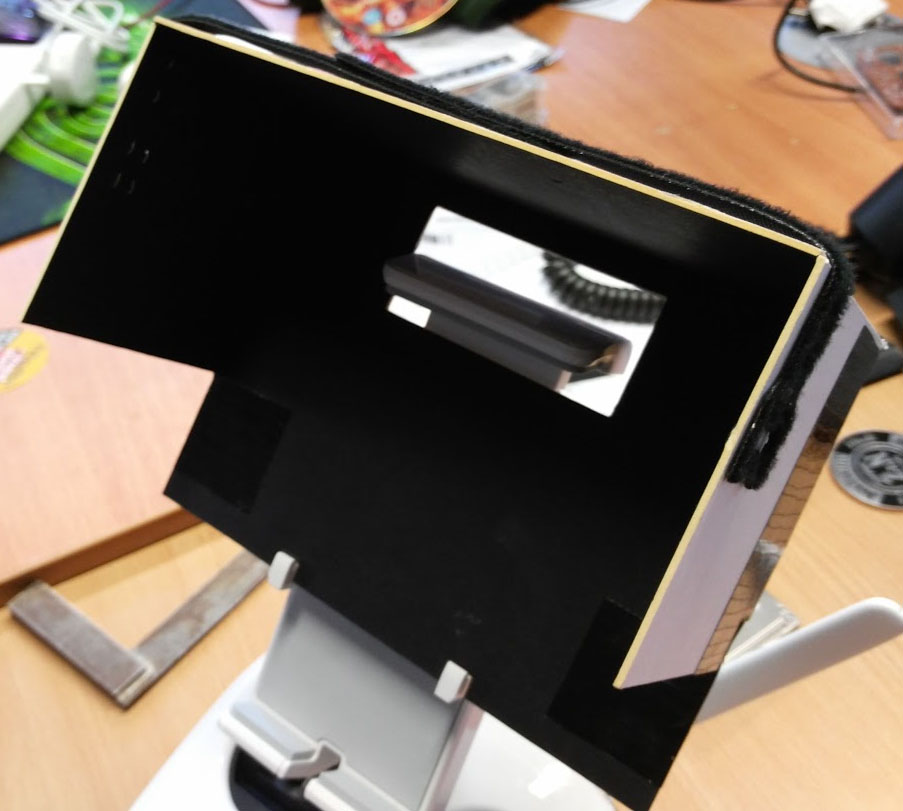

marks-sunshade marks-sunshade1 marks-sunshade2 marks-sunshade3 ipadshade1 ipadshade2 ipadshade3

*Disclaimer!  I can't guarantee this will work for your controller/phone, it was a custom make for one specific.  Template is not necessarily to scale, your mileage may vary. You don't have to go home but you can't stay here.  Trousers may go down as well as up.  Your home is at risk if you douse it in petrol and chuck a match in the kitchen window.

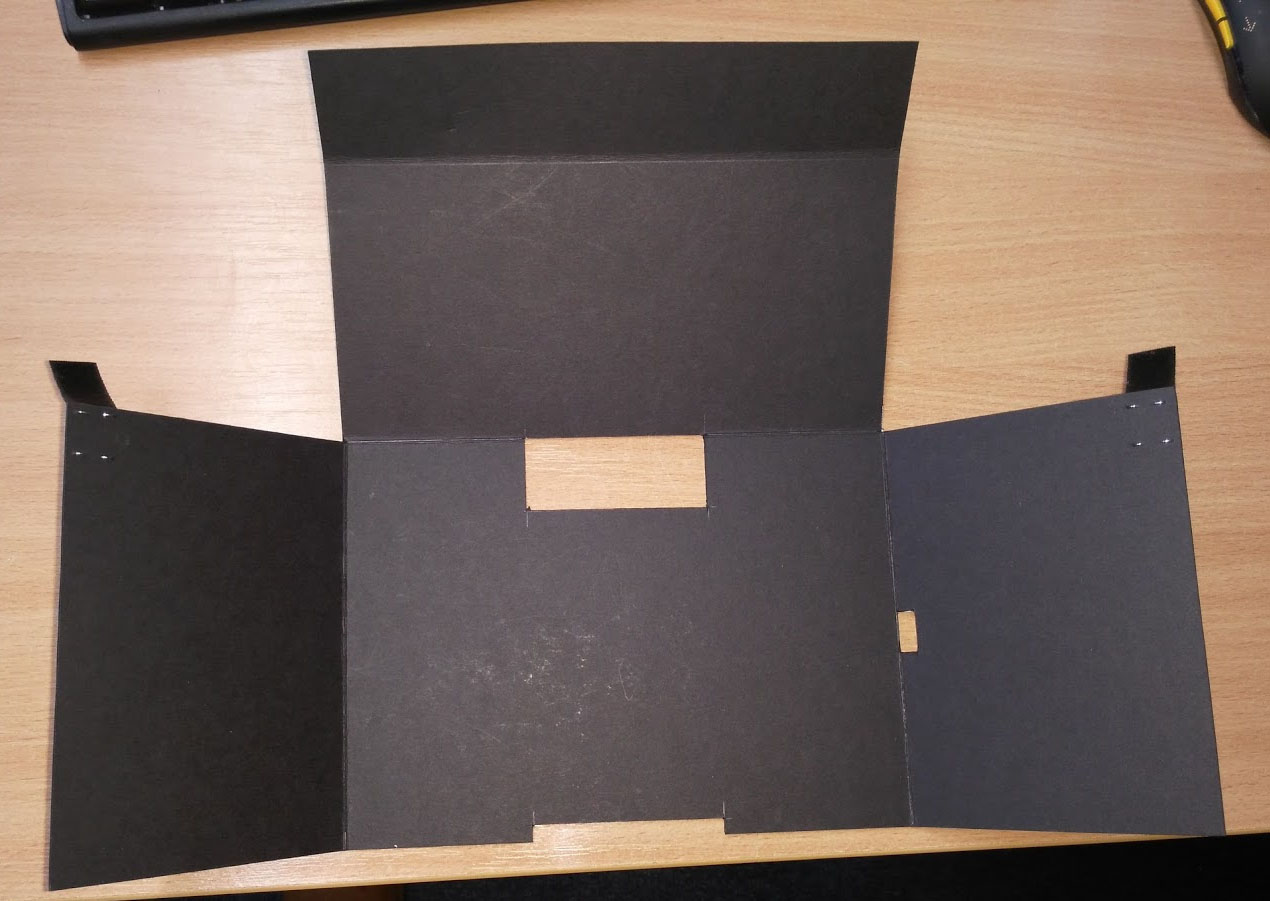

*EDIT:  He's only gone and got himself an iPad Mini to run the 'copter, so it was out with the scalpel for another one.  Almost exactly the same, just a bit bigger.  Cardboard, duct tape, velcro.

Song Lyrics to ePub format

Thursday 09 October 2014 at 6:40 pm

As lead singer in my band Hot Cold Ground I'm hopeless at learning lyrics, so I always have a music stand with a big book of printed lyrics (and sometimes chords, but this IS a blues band, so not often!), which is just another bit of gear to carry around and set up.

I'm a long-time ebook reader, starting off reading on old Palm Pilot and Clié devices, before moving to cheap Chinese Android tablets, and recenly ending up with a Barnes & Noble Nook Simple Touch with Glowlight.  This last device is perfect, with an endless battery life and backlight for night-time use.

So with a second Nook purchased the next stage is to see if I can convert my lyrics document to use on the reader.  It does support .pdf but doesn't quite have the functionality I needed, like a contents list and one page-per-song.  Here's how I did it.

The ideal source format to convert is HTML, and I use the excellent and free Calibre to do the conversion (more on that later).  To create the source I used Dreamweaver, but there are loads of free HTML editors available.  I did try using Word's 'Save As HTML-Filtered' but it adds a truckload of extra crap.

The key here is to avoid most of the tags that normally get generated.  I'm not going to go into detail on HTML coding, again there are plenty of tutorials out there.  All you really need is the <h1> tag and the <br/> line break tag.  Avoid the <p> paragraph tag - it just causes confusion.  If you're typing in your content then use Shift+Enter for line breaks rather than Enter on its own. You'll probably need to manually edit your code to add the tags to titles.  I haven't explained this very well so here's an example:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>Hot Cold Ground setlist Oct 14</title>

<h1>Song One Title</h1>
La la la verse 1 line 1<br />
La la la lyrics line 2<br /><br />
La la la verse 2 line 1<br />
La la la lyrics line 2<br/>
<h1>Song Two Title</h1>
etc etc

The top bit (up to </head>) is auto-generated by Dreamweaver, then the important bit is enclosed between <body> and </body> tags.  Song titles (which the ePub will treat as chapters) need to have <h1> and </h1> either side of them, and each line of the song has <br/> (a self-escaping line break) at the end.  Add a second one if you want a gap between verses.

Depending on how you've put the lines in (I did it by copy & paste from Publisher, which initially didn't work - I had to paste into Notepad first then copy again) you may end up with those silly paragraph <p> tags.  You can leave them in if you want but it will indent first lines and waste space, so best to strip them out.

Still with me?  Good.  Now save that document and get Calibre installed.  I'm not going to go through how to use the program, you can pick that up for yourself.  But basically, you import the .htm file you've just made into Calibre, then run its conversion routine to convert it to ePub.  The key part here is the Structure Detection, the first box dictates what Calibre will look for to make chapters, and it'll be your <h1> tags.  You can use the wizard here, but basically it needs to say //h:h1.  In the Table Of Contents section check the first box to force use of auto-generated Table Of Contents.  Apart from adding a picture if you want, you're good to go.  Stick the resulting converted file onto your eReader and that's it.  It works nicely for me, with most songs on a single page (text size dependent, of course), and when you swipe or press each song starts on a fresh page.

Next is attaching the Nook to my mic stand.  I've bodged something but it's not a permanent solution, so will probably end up buying a proper tablet holder.

VGA over Cat5

Friday 30 May 2014 at 12:49 pm

Regular listeners will know I like using Cat5 cable (of which I have an inexhaustible supply of scrap lengths), so having successfully used it for audio, I thought I'd look at video too.

It's for a work project - we have a number of digital signage screens running on the excellent Xibo open-source system.  4 of our screens run off one client PC using a splitter/transmitter system from Mauve, left behind from the original installation, but these rely on a single Cat5 run between transmitter and receiver.  Other client displays use an old re-purposed laptop running Windows 7 ThinPC (a cut-down version of W7), which can be hidden in a suspended ceiling above the displays.

For the new installation we have no suspended ceiling, and no way of running Cat5 back to the transmitter, so it needs another old laptop, but there's nowhere to hide it.  There's a network point near the screen, connected back to a switch cabinet.  So, I thought, if I can put the laptop in the cabinet, and run VGA over the ethernet cable, then job's a good'un.

So I did a bit of Googling and found this on Instructables.  Could it possibly work?  Well, the answer is YES!

Got an old VGA male-male cable and cut it in half, then had to use a multimeter to work out which pins are connected to which wires.  (Caution - cheap thin VGA cables are somehow different, and combine some of the connections, so make sure it's a nice thick one).  The diagram on Instructables is viewed from the rear so is back to front, so watch that, too.  On mine the wires were as follows and connected to the Cat5 thus:

Pin1 Red+ Solid Green
Pin2 Green+  Solid Orange
Pin3  Blue+  Solid Blue
Pin4  NC  -
Pin5  Black  Blue/White (with Pin8)
Pin6  Red Screen  Green/White
Pin7  Green Screen  Orange/White
Pin8  Blue Screen  Blue/White (with Pin5)
Pin9  NC  -
Pin10  NC  -
Pin11  Brown (not used)  -
Pin12  NC  -
Pin13  Orange  Brown/White
Pin14  White  Solid Brown
Pin15  NC  -

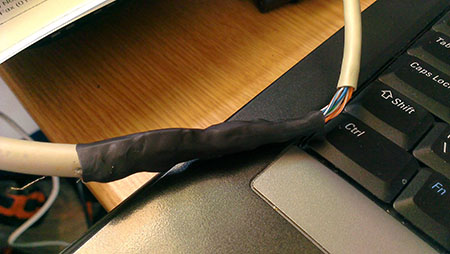

Spliced together (sorry, I sealed before photographing) with plenty of heatshrink it looks like this:

Make 2 of these!

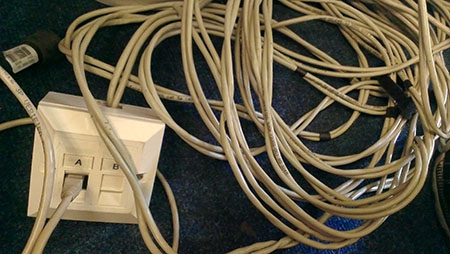

Then I tested using another bodge job - a 20m extension cable with a pair of cat5 cables and boxes we use for emergency networking.

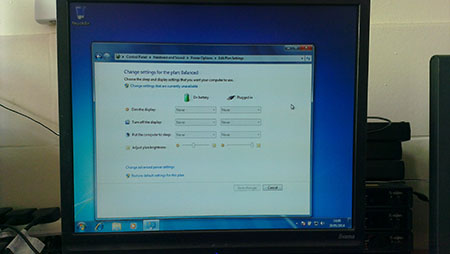

And bugger me, it only works!  1024x768 is what we'll be using, but it did 1280x1024 fine too.  There's a little bit of ghosting, but for text on a screen, it's perfect.

I'll update when it's actually in situ and working across what will be Cat6, in fact.

Smartphone Macro Lens from broken DVD

Thursday 27 February 2014 at 6:54 pm

This is not my original idea, but one I stumbled upon on the internet.  Someone posted a hack (this one) so I thought I'd have a go myself.

I don't have any pictures of the DVD teardown, but it was a Dell laptop unit.  I just used a small screwdriver to remove all the screws.  When you get to the lens unit there were 2 lenses - the one you see with the drawer open, plus another buried amongst a series of prisms.  I'd imagine they're all broadly similar, but your results may vary.  Anyway it was the second hidden lens I used (although more on the other one later).

I found a plastic cup thingy (no idea what it was, you could try a strip of plastic or a screw cover), and drilled a hole to mount the lens.  It's not glued in, just an interference fit.  Might add a dot of superglue just to secure it.  Once I'd tested it by taping it in place, I needed a better solution for mounting to the phone.  Experiments with paperclips were fiddly and scratched the phone's case, so I went simple with elastic bands.  You can see the results in the pictures below.  The lens needs to be about 2-3mm from the object being photographed, and you'll need a steady hand to minutely adjust the height.

The other lens I taped to the front camera of my Surface, and initially thought it wasn't working, but the magnification is huge and the object needs to be really close.  Takes a steady hand and the focus is tricky to get right.  Possibly a bit fiddly for casual use!

lens mount lens in place on phone fifty pence 1 fifty pence 2 guitar nut hallmark knife blade pencil tip power connector ten pound note ship ten pound note velcro lens on Surface hair

Cardboard tablet or smartphone stand

Tuesday 25 February 2014 at 10:24 am

Now available in hand made carbon fibre from Jolly's Carbon click here

carbon stand

The latest in a series of home-made things to do with a tablet, I wanted to make a simple stand so my wife could use hers to show recipes/crochet patterns/whatever.  It started out as an inverted v-shaped bit of card slotted into 2 runners, it worked but was a bit clunky.

My work colleague, a technician by trade but an artist at heart, decided that it could be a lot more elegant with her triangle-based design.  So with Adobe Illustrator we knocked up the template you see here.  It was cut out of artists' mount board and as you can see is pretty sturdy - to the point where it will (just about) hold a heavy Microsoft Surface.  The tablet shown is a quite lightweight 7" Chinese job, so you'd need to scale it up for a full-size iPad.  If you want to have a go you can download the pdf here.

UPDATE - my work has a CNC machine which can cut plastics, so I sent them my design.  It's 3mm hard plastic, so the fold needed to be made with a hotwire.  This limits portability, so stay tuned for a new version in 2 parts with an interlocking system!

tablet0 tablet1 tablet2 tablet3 tablet4 tablet5 tablet6 tablet7

Also in this series:
Tablet case made of a book
In-Car headrest mount made of a DVD case

Simple tripod mount for smartphone

Wednesday 06 November 2013 at 08:50 am

I found I wanted to mount my smartphone to a tripod base to try some time-lapse photography (as you do).  There are some nice ones out there to buy, but I needed it there & then.  So I found an old plastic thing - I don't even know where it came from, but I could have used anything similar, like a bottle cap for example.  Obviously it needs to be deep enough to give some support.  I cut 2 slots in the sides.

I had previously taken apart an old broken camera and kept the tripod mount doohickey, so I cut a square hole and glued it in.  I guess you could use a nut of the correct thread size & pitch (sorry, don't know what that is).

So now my phone sits nicely in either aspect on top of its tripod.  If I need more security I just add an elastic band!

IMAG0549 IMAG0550 IMAG0551 picture022 picture023 picture024 (2)

Android "Avoided Poor Internet Connection" Error

Saturday 14 September 2013 at 5:55 pm

Here's another 'I Googled this problem and found another solution' post.

My wife's phone (HTC Desire X, running ICS) refused to connect to the home WiFi, and in the settings the "Avoided Poor Internet Connection" message repeatedly appeared.  Changing to a static IP address fixed it for a short time, but it came back.

A bit of research seemed to indicate this is quite common on Android devices, but the solution involves having root access.  I'm quite happy to attempt rooting my own devices, but don't really like mucking about with others', so I found myself reasoning thus:  the accepted solution is deleting files in a system folder, which must store information about the wireless connection, like its SSID.  So if the SSID is changed, the error might go away.  And it did.

So the short solution (for me) was to change the router's SSID (WiFi name) and we're all working again.  Obviously it's a pain to reconnect every wireless device in the house, but worth the effort.  I've also fixed the IP address which with a bit of luck will help stop it happening again.  The problem I think stemmed from my router starting to fail, and a new router is connecting efficiently now.

Hot Cold Ground rewrite Route 66 with a local flavour

Thursday 29 August 2013 at 10:01 pm

My blues band Hot Cold Ground love to do 12-bar blues standards like this one, but we decided there were too many songs about places in America and thought we'd re-write the lyrics.  Originally it was 'Route M6' but that wasn't local enough, so what we have here is the A146, which runs between Norwich in Norfolk and Lowestoft in Suffolk.  Obviously if you know the area it's funnier.  Feel free to share it with your friends.

Visit this page on YouTube.

Youtube video "A5MjcOmUDcE".

Technical info for geeks - filmed on a Fuji S200EXR and a Casio EX-FS10 at a ridiculously low resolution.  It was all filmed on the actual A146 in August 2013.  The aerial views are from Google Earth (filmed with a camera in front of my screen as I don't want to buy Pro!)  Edited in Adobe Premiere Pro CS6.
